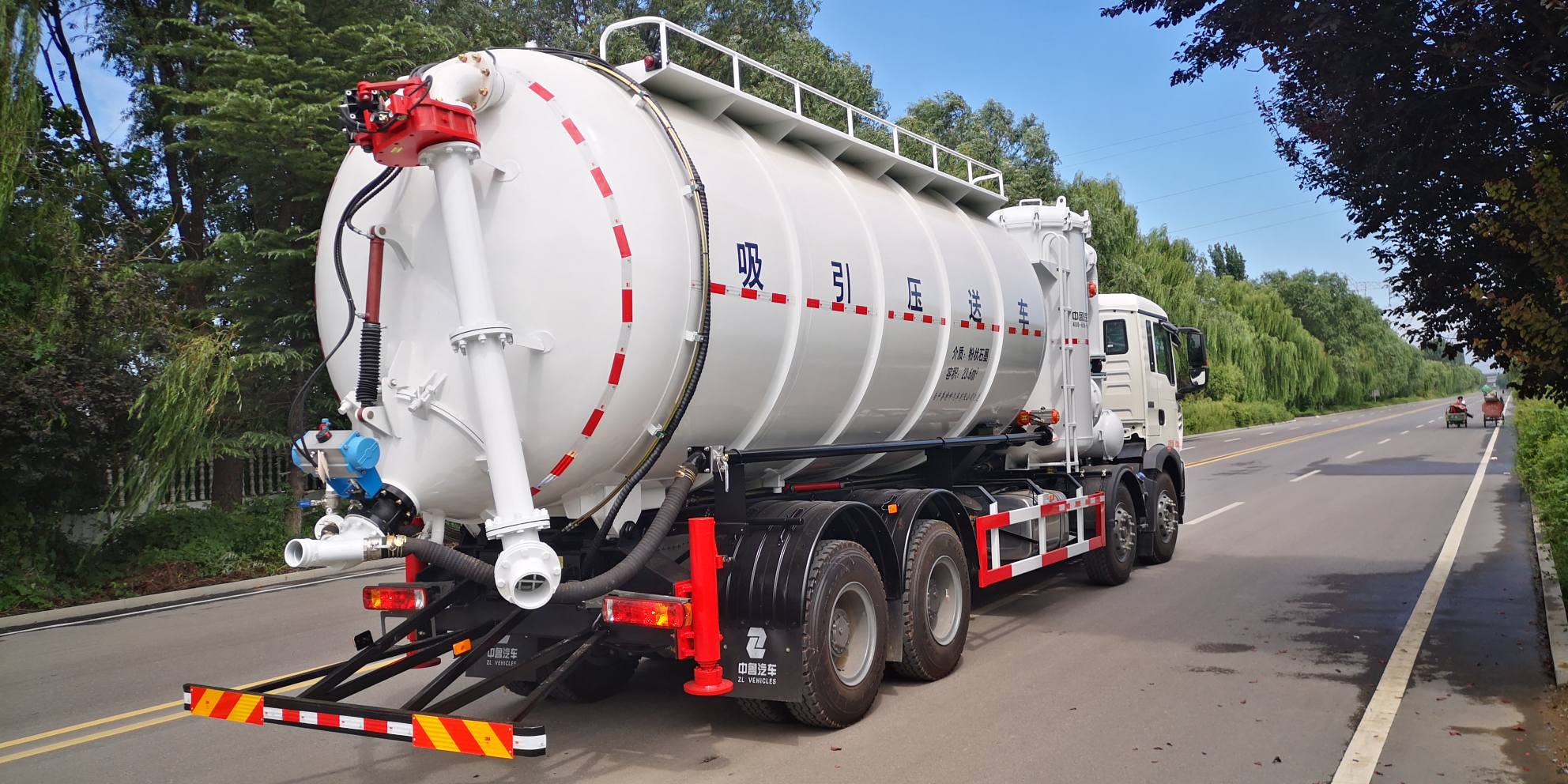

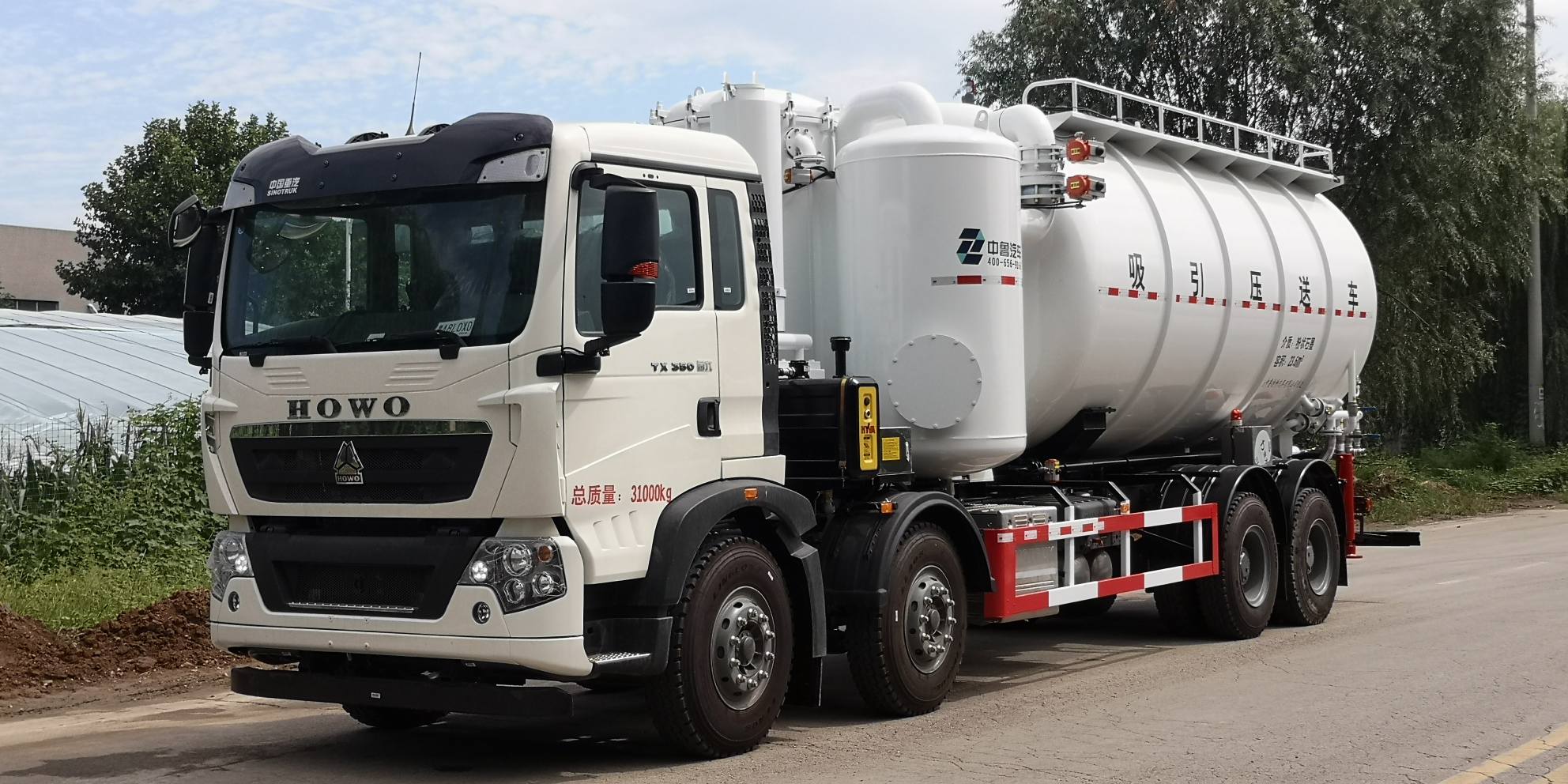

23 Cubic Meter Suction Truck
1.The high-capacity design makes the vehicle versatile for a wide range of scenarios.
2.The vehicle's fully enclosed operation ensures full compliance with environmental standards.
3.The vehicle is designed with automated operation, ensuring operator safety.
4.It combines efficiency, environmental friendliness, and safety in one system.
5.The vehicle features a triple-tank design for finer filtration and higher efficiency.

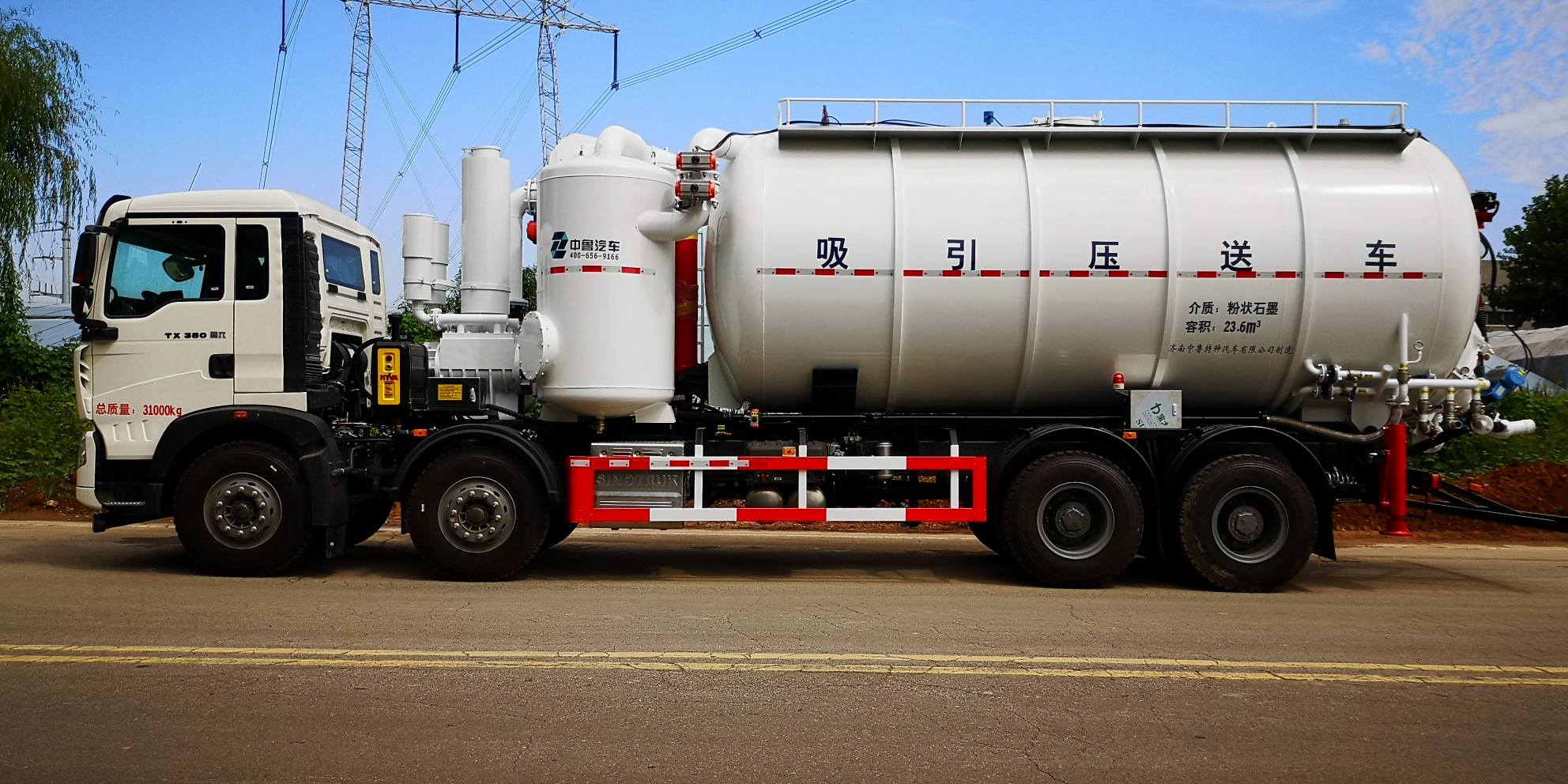

Vehicle Overview
The truck is a multi-functional unit equipped with vacuum suction loading, positive pressure unloading, positive pressure receiving, tank lifting discharge, and transportation capabilities. It boasts a large loading capacity and high operational efficiency.
1. Vacuum Suction Loading
During operation, the vacuum pump creates a negative pressure inside the tank through gas transfer, enabling the high-speed suction of materials from the supply source. Dust from the suction process is treated through a filtration system, and the discharged air can meet a micron-grade emission standard, ensuring full compliance with environmental requirements.
2. Positive Pressure Unloading
Upon reaching the designated receiving silo, the air compressor activates (or an external air source can be used). The fluidized materials are entirely pressed and discharged into the target silo using compressed air. The entire process is fully enclosed, preventing any secondary pollution.
3. Positive Pressure Receiving
This function utilizes an external air source for positive pressure loading via a ground-based conveying device. The air is discharged through the vehicle's onboard filtration system, with emissions meeting environmental standards. Positive pressure receiving offers the advantages of long-distance conveyance (>50m), low energy consumption, high conveying capacity, and low operating costs.
4. Tank Lifting Discharge
A lift cylinder is installed at the front of the tank, and a hydraulically operated rear cover is fitted at the back. The tank can be lifted at an angle of 35-42 degrees, allowing materials (particularly dust) to be discharged by gravity.
5. Transportation Function
Once materials are loaded via suction, no transfer or reloading is required. The vehicle transports the load directly to the specified location for unloading. The entire transportation process is fully sealed, eliminating any risk of secondary pollution.
Technical Specifications
Item | Details |
Chassis Configuration | |
Chassis | Customizable as per client’s requirements |
Drive Type | 8×4 (4 axles) |
Working Parameters | |
Effective Tank Volume | 22.56 m³ |
Suction Rate | 30–60 t/h (Horizontal distance: 5 m; Vertical depth: 3 m; with 2 elbows) |
Discharge Rate | 30–60 t/h (Horizontal distance: 5 m; Vertical height: 20 m; with 2 elbows) |
Discharge Height (without auxiliary blowing) | 20 m |
Residual Material Rate | ≤0.2% |
Tank Working Pressure | -0.07 ~ +0.2 MPa |
Tank Lifting Angle | 35–42° |
Level Alarm System | RF capacitive type |
Vacuum Pump | |
Max. Vacuum Degree | -78.4 kPa |
Free Air Flow | 48.6 m³/min |
Safety Valve Opening Vacuum | -65 ~ -70 kPa |
Air Compressor | |
Displacement | 10 m³/min |
Max. Pressure | 200 kPa |
Lifting Hydraulic Cylinder | |
Type | Single acting 3 stage telescopic sleeve cylinder |
Rated Working Pressure | 21 MPa |
Total Stroke | 3830 mm |
Hydraulic System | |
Hydraulic Oil Pump Rated Pressure | 20 MPa |
Hydraulic Oil Tank Volume | 70 L |
Key Valves | |
Suction Valve | DN150 disc valve, JIEGAO hard sealed valve |
Discharge Valve | DN125 ball valve, JIEGAO hard sealed valve |
Control System | Multi - function PLC LCD screen or push button operation. Real time monitoring of vacuum pump / air compressor speed, tank pressure, valve status, etc. Clear, simple and reliable. |
Filter Bag Cleaning | Automatic pulse back flushing during suction (pulse frequency adjustable) |
Note | Components can be customized as per client’s requirements |

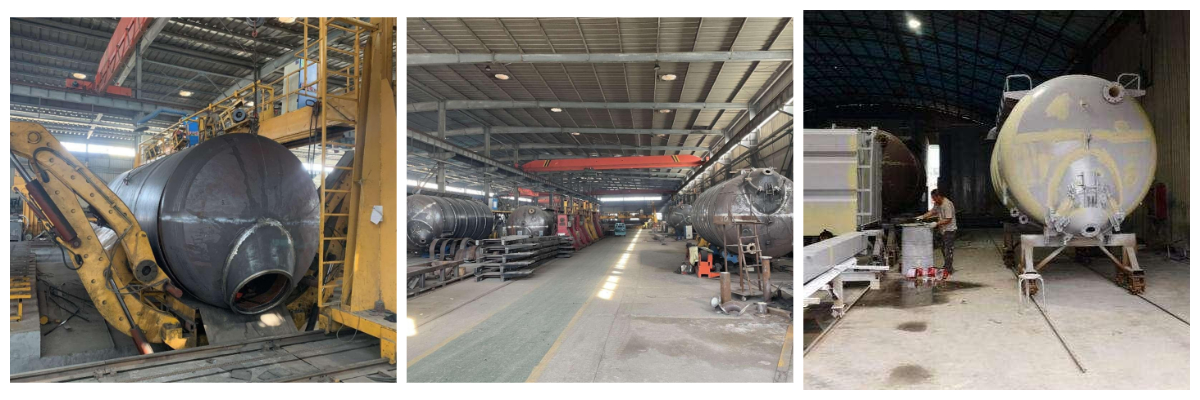

Product Manufacturing Process

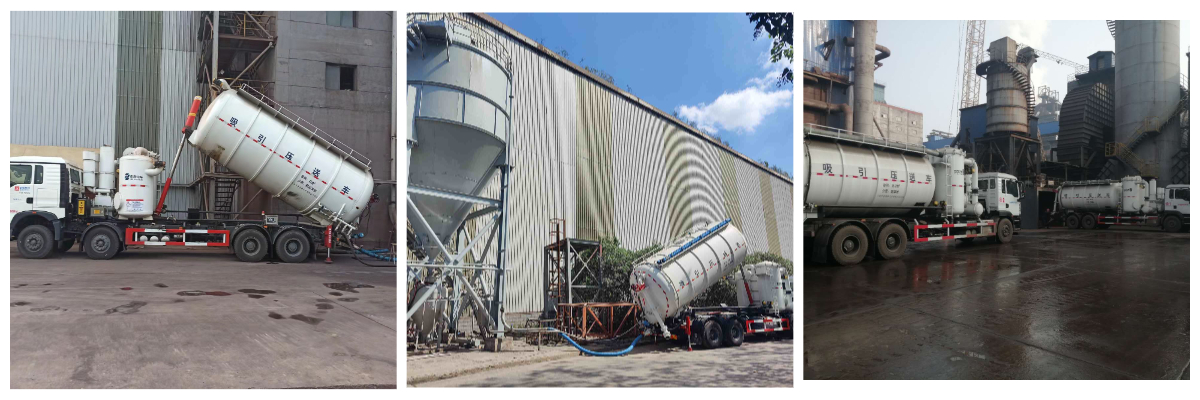

Product Applications

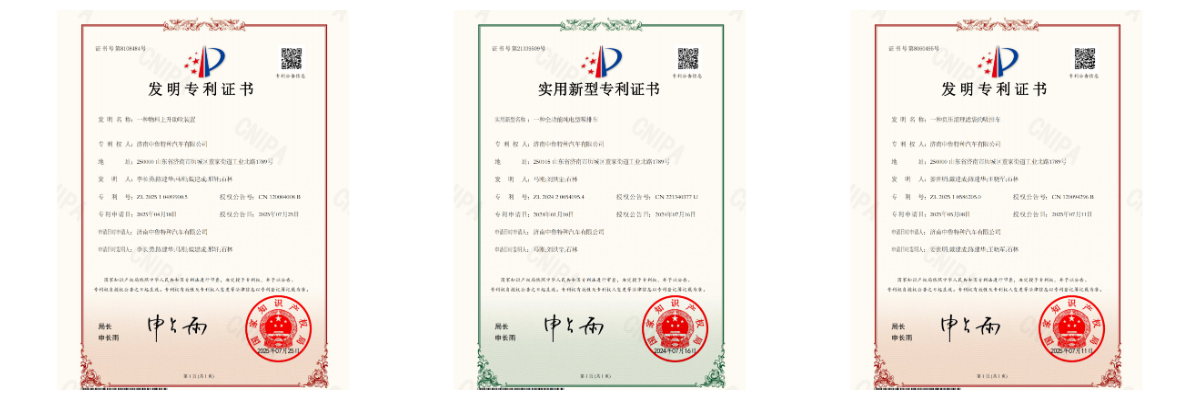

Patent Certificate
