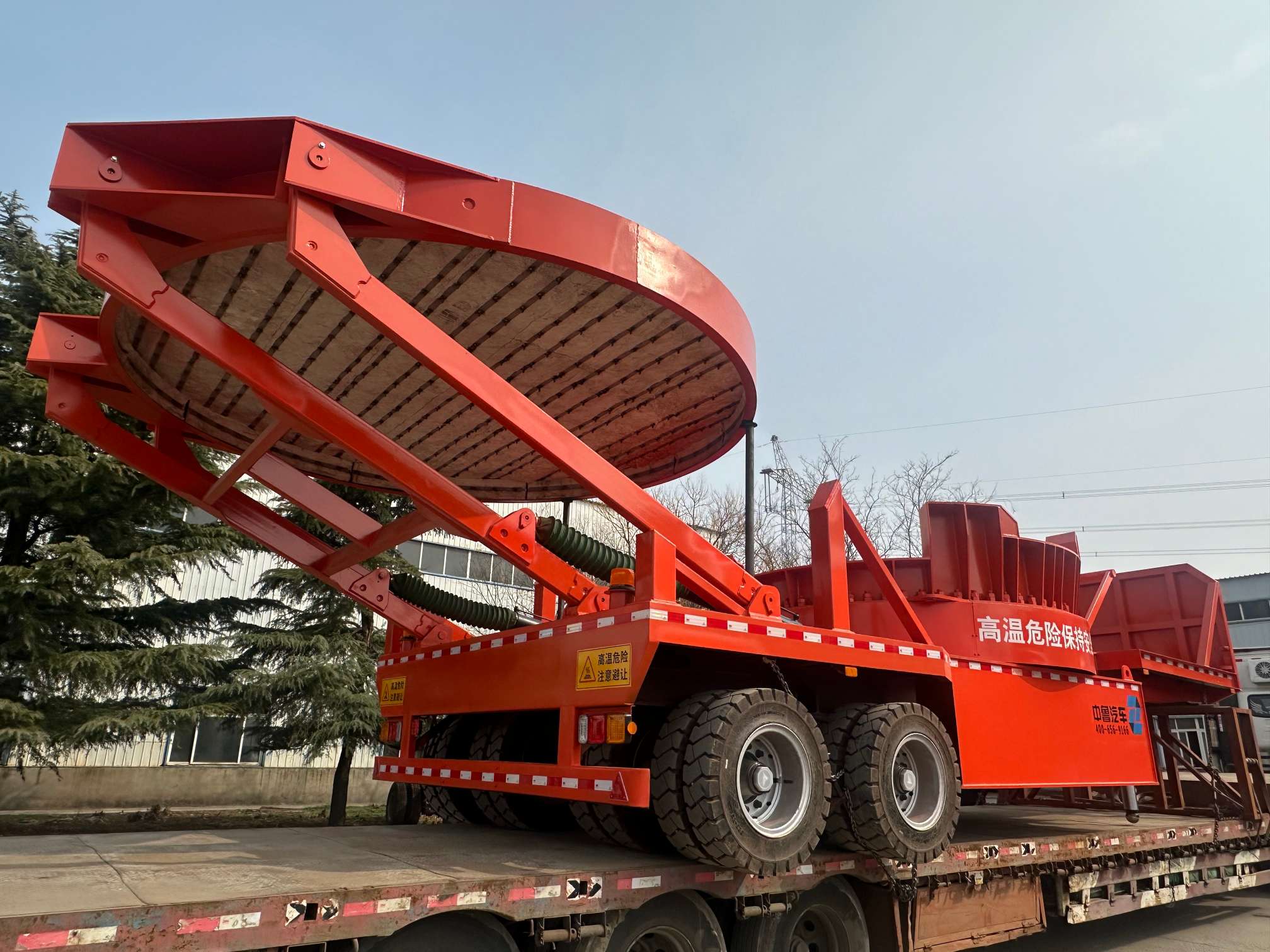

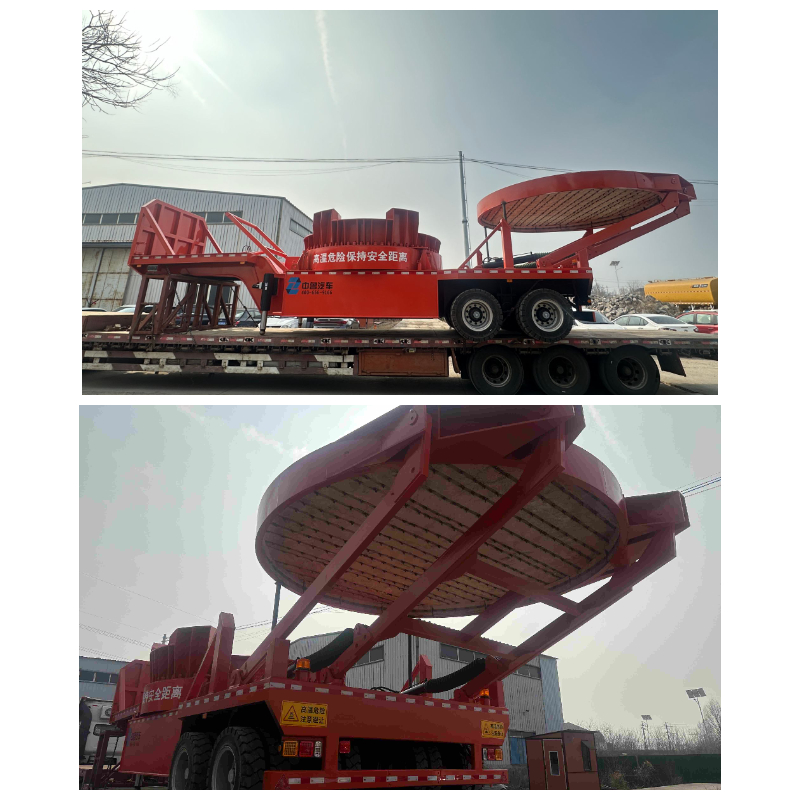

Molten Iron transport Vehicle With Insulation Cover
1. Efficient Thermal Insulation, Energy Saving and Cost Reduction
2. Intelligent and Convenient, Adapt to Efficient Production
3. Safety Protection, Ensure Operation Safety
4. Green and Environmental Protection, Practice Low-Carbon Concept
5. Durable and Reliable, Reduce Maintenance Costs
1.Adopting a split-type insulation cover design, the core insulation layer is composed of stainless steel structural parts and high-temperature resistant aluminum silicate fiber felt, which can significantly reduce the temperature drop of molten iron during transportation, reduce additional energy supplement in the steelmaking link, and at the same time reduce the precipitation of molten iron condensed steel slag, reduce material loss, directly achieve cost reduction and efficiency improvement, and conform to the requirements of lean production.
2.The insulation cover can effectively inhibit the unorganized smoke emission during molten iron transportation, greatly improve the air quality in the plant area and along the transportation route, reduce the impact of high-temperature heat radiation on the surrounding environment and personnel, help iron and steel enterprises achieve green transformation.
3.The vehicle body is welded with high-strength steel, and the frame is a double-beam welded box structure, which has sufficient strength and rigidity to withstand the weight impact of the molten iron tank and the bumps during transportation. The insulation cover is made of wear-resistant and high-temperature resistant materials
4.The molten iron transport vehicle with insulation cover is composed of five core parts: vehicle body, molten iron tank, insulation cover system, bogie and connection buffer device. All components work together to ensure the safe, efficient and insulated transportation of molten iron. The vehicle body is welded with Q345-B steel plate, and the main bearing beam is a box structure, which is subjected to overall annealing treatment after welding to eliminate internal stress, and can effectively bear the total weight of the molten iron tank and molten iron.
5.This model is mainly applicable to large and medium-sized iron and steel enterprises, adapting to the short-distance transfer scenario of molten iron from blast furnace tapping to steelmaking workshop and pig casting machine. It can directly inject molten iron into steelmaking furnace or mixing furnace, and can also be used for temporary storage and transfer of molten iron.
